A robust and flexible embroidered heating belt for thermotherapy

Found another interesting paper in the embroidery and heating space:

Wearable heating belts are pushing the boundaries of smart textiles, offering a soft and comfortable alternative to rigid heat pads for chronic pain, muscle tension, or injury recovery. Embedding heat directly into fabric creates a more natural, body-conforming experience. For people dealing with lower-back pain, which is among the most widespread physical ailments globally, this embroidered belt offers a lightweight and wearable solution that moves with the user.

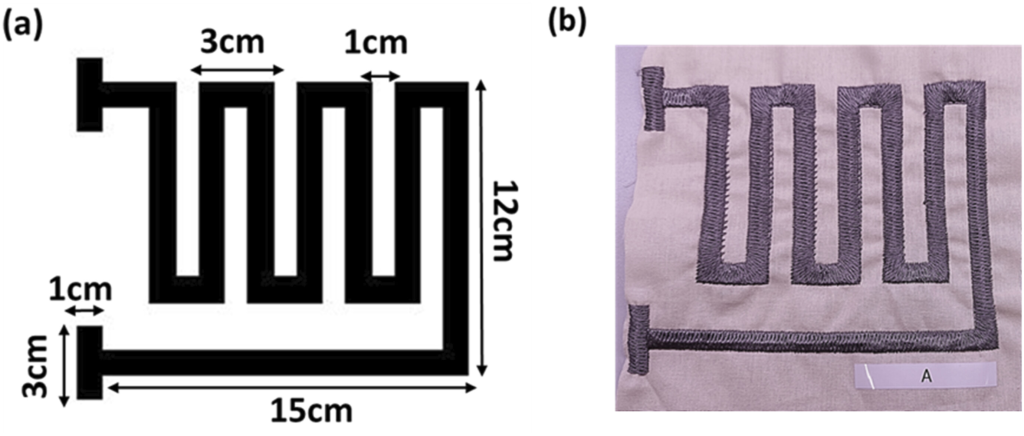

This study details a heating belt made by embroidering silver-coated polyamide thread onto cotton fabric. The result is a soft, breathable, and flexible thermotherapy device. Importantly, the embroidery was done using standard commercial machines, showing that the method is not just effective but also scalable and accessible for widespread use.

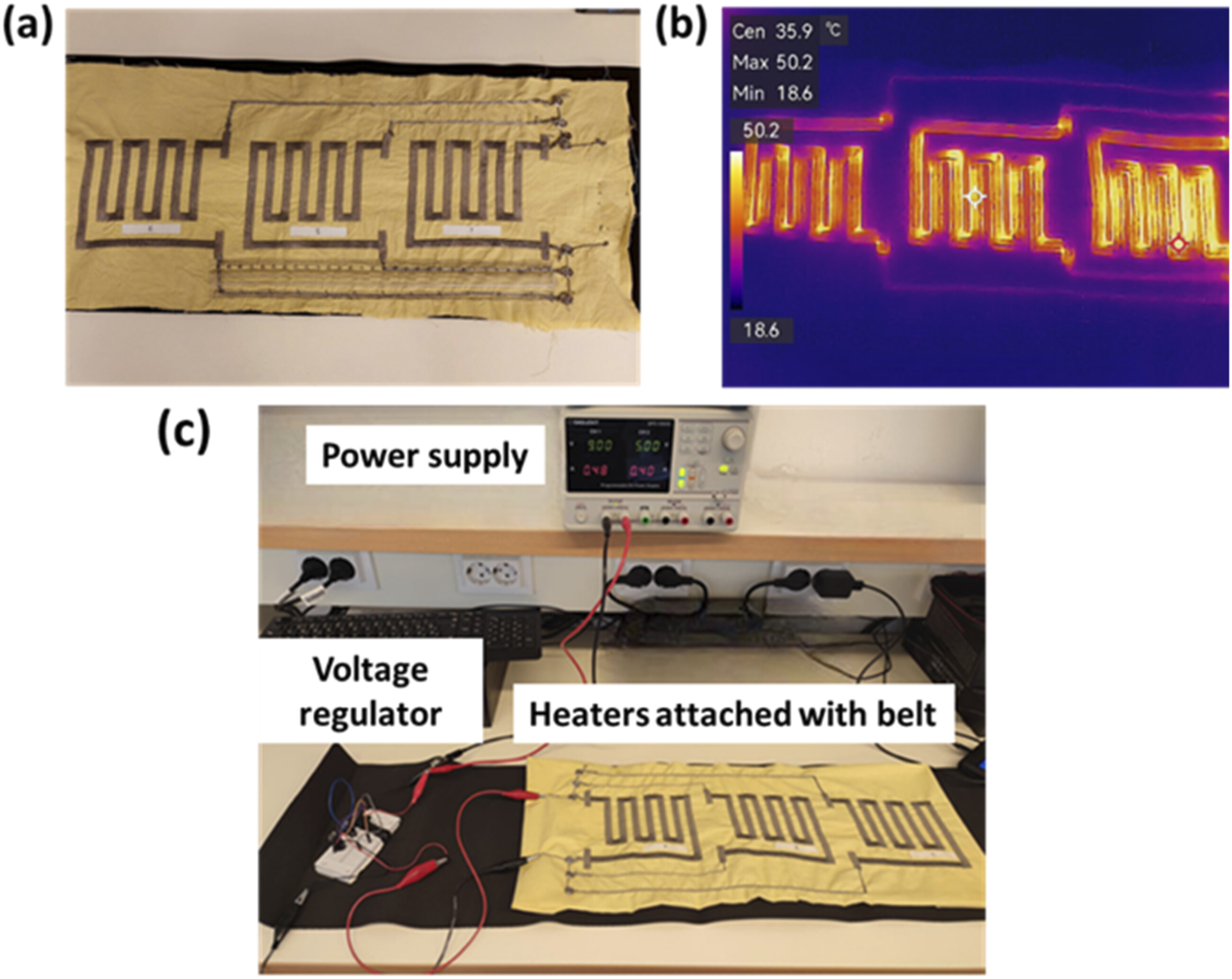

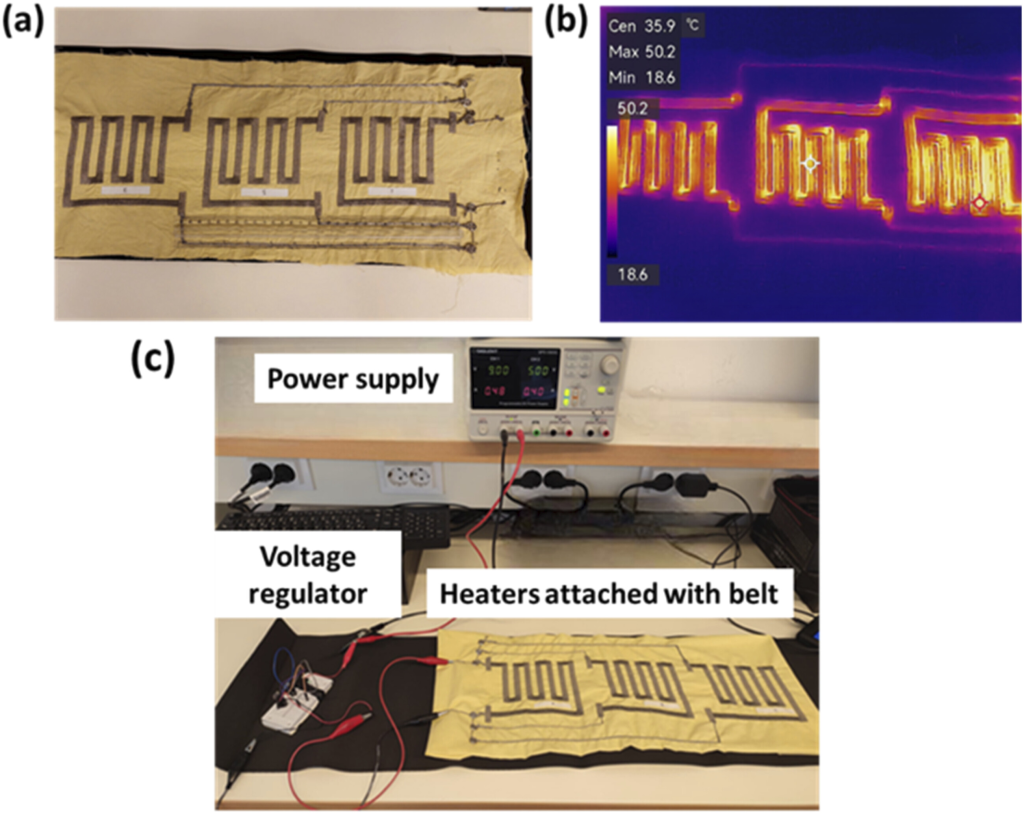

The heating system performs well. It reaches about 47°C in under a minute at 9 volts, with lower voltages producing gentler warmth around 29 to 33°C. A Bluetooth-enabled controller allows users to adjust the heat level through a smartphone app, offering a clean and modern user experience paired with textile comfort.

Durability tests included bending, folding, and hand washing. Resistance increased slightly with stress but the belt maintained reliable performance. This shows that embroidered conductive thread can handle day-to-day wear while staying functional. The system is rugged enough for practical use without sacrificing flexibility or comfort.

In a human trial, one subject wore the belt for 15 minutes at therapeutic temperature. Doppler ultrasound confirmed a measurable increase in blood flow to the lower back, supporting the therapeutic claims. This kind of validation is critical when translating textile-based prototypes into real health tools.

Read the full paper here:

https://journals.sagepub.com/doi/10.1177/15280837251362959
